7314 BECBM Angular Contact Ball Bearing

Description Package Information Inquiry

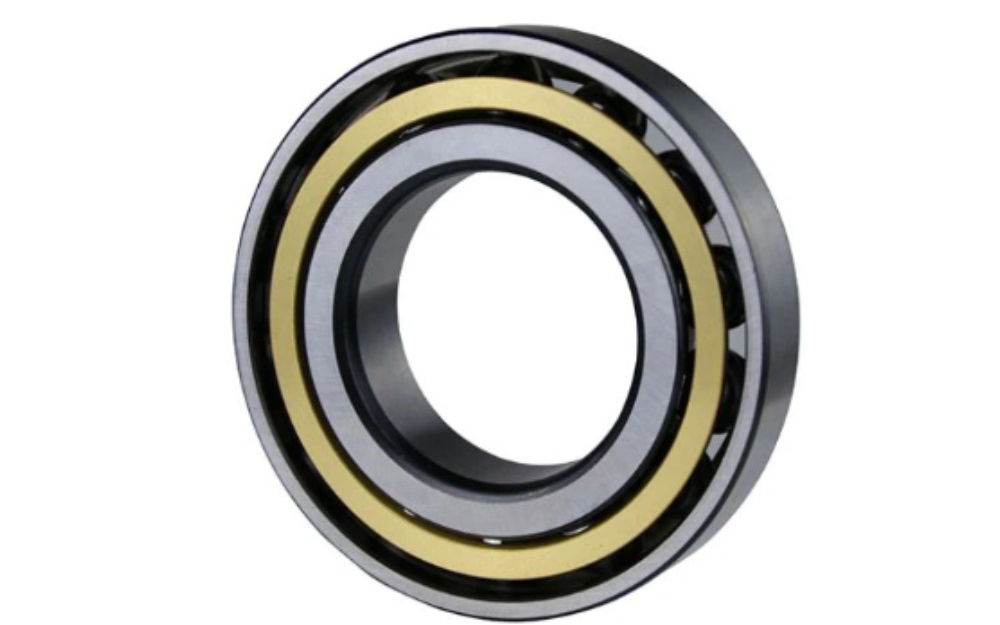

The 7314 BECBM is an angular contact ball bearing featuring a single row of balls and offset raceways in the inner and outer rings, allowing it to support combined loads along the bearing axis. It has a 70 mm bore diameter, 150 mm outside diameter, and a width of 35 mm. Engineered for precision and durability, this bearing is well-suited for demanding applications that require smooth and dependable rotational performance.

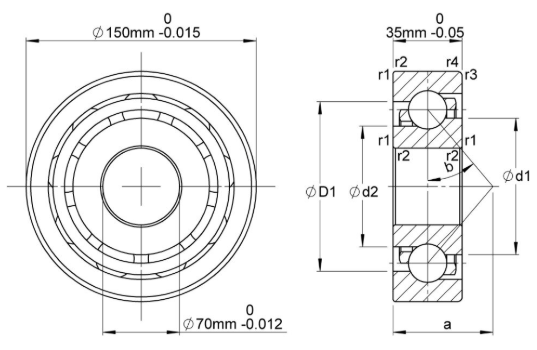

Specifiation:
(d)Bore Diameter:	70 mm
(D)Outside Diameter:	150 mm
(B)Overall Width:	35 mm
(C)Dynamic Load Capacity:	28575 lbf
(Co)Static Load Capacity:	22050 lbf
Max speed:	7 RPM
Bearing weight:	2.65 kg

Standard Individual Package
