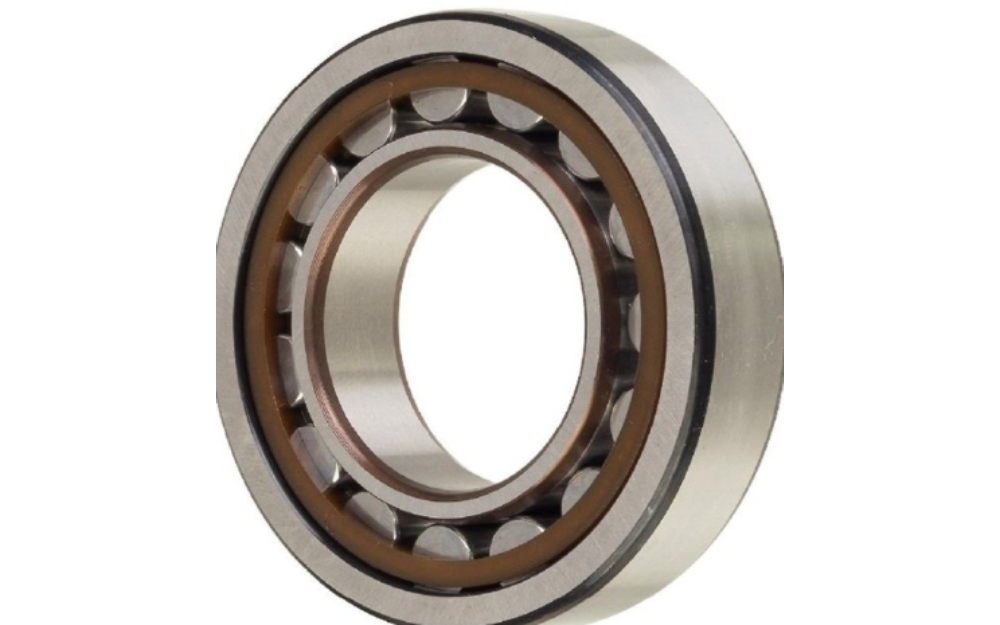

NJ 202 ECP Single row cylindrical roller bearing, NJ design

Description Package Information Inquiry

Single row cylindrical roller bearings are ideal for handling heavy radial loads at high speeds. The NJ design features two fixed flanges on the outer ring and one on the inner ring, allowing for axial displacement in one direction. A key advantage is their separable construction, which simplifies installation and allows individual components to be replaced or interchanged with ease.

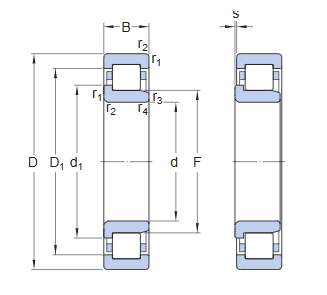

Specifiation:
(d)Bore Diameter:	0.591 in
(D)Outside Diameter:	1.378 in
(B)Overall Width:	0.433 in
(C)Dynamic Load Capacity:	2 810 lbf
(Co)Static Load Capacity:	2 293 lbf
Max speed:	26 000 r/min
Bearing weight:	0.1058 lb

Standard Individual Package
